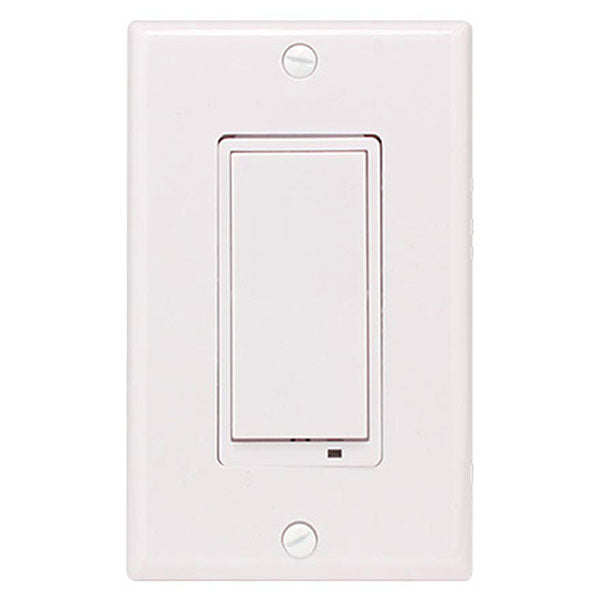

The Linear WS15Z-1 Wall Mount Switch allows remote ON/OFF control of loads connected to the switch, and is easily wired in place of a standard wall switch.

The Switch integrates with other Linear Z-Wave enabled products, and can also act as a wireless repeater to ensure that commands intended for another device in the network are received (useful when a device would otherwise be out of radio range).

Replaceable Trim Ring

The WS15Z-1 Wall Mount Switch has a field replaceable trim ring - the color of the device can be altered with the Trim Ring Kit model in black, brown, almond and ivory.

Specifications
  • Maximum Load:
    • Resistive: 15 amps (1800 watts) max., 120 VAC
    • Motor: 1/2 H.P. maximum, 120 VAC
    • Incandescent: 600W maximum, 120 VAC
  • Signal (Frequency): 908.42 MHz, 9.6Kbps or 40Kbps capable
  • Range: Up to 100 feet between the wireless controller and/or the closest Z-Wave device
  • Input: 120v 15A 60Hz
  • Z-Wave Version 4.55
  • Network wide inclusion
  • Scene: Command Class
  • Security beaming
  • Requires a Neutral
  • Replaceable Trim Ring Design
$39.00
