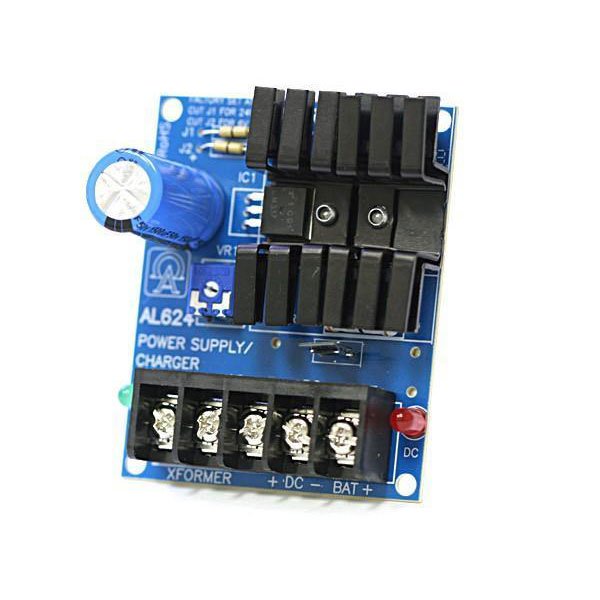

Model AL624 power supply converts a low voltage AC input to a 1.2 amp of continuous supply current @ 6VDC or 12VDC or .75 amp of continuous supply current @ 24VDC. Dimension (approximate): 3L x 2.5W x 1.5H

Features

• 6VDC, 12VDC or 24VDC selectable output
• 1.2 amp of continuous supply current @ 6VDC or 12VDC or
• .75 amp of continuous supply current @ 24VDC
• Transformer requirements:
  • 12.5VAC/20VA for 6VDC output
  • 16.5VAC/20VA for 12VDC output
  • 24VAC/40VA for 24VDC output
• Filtered and electronically regulated outputs
• Short circuit and thermal overload protection
• Built-in charger for sealed lead acid or gel type battery backup
• Maximum charge current .3 amp
• Zero voltage drop upon transfer to battery backup
• AC input and DC output LED indicators
