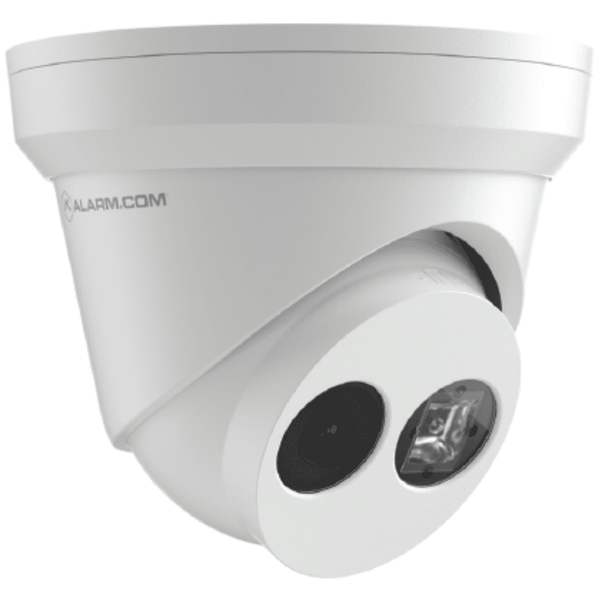

The ADC-VC836 from Alarm.com is a high performance fixed turret camera optimized for indoor and outdoor video

monitoring. Its unique, compact design and outstanding HD quality video make the camera ideal for both commercial and residential video installations. The camera features a vandal-resistant exterior casing with an IP67 rating and Power over Ethernet (PoE) capabilities.

Camera Features

• Power over Ethernet
• IR night vision
• 1080p HD video
• IP67 rated waterproof & dust-tight

Included Accessories

• Camera
• Camera mount
• Mounting hardware
• Drill template
• Water resistant cap

Specifications

Live resolution options 1920x1080, 1280x720, 640x360

Recording resolution 1920x1080, 1280x720

Recording compression H.264

Image sensor 1/2.8" Progressive Scan CMOS

Lens 2.8 mm, F1.6

Angle of view 108°

Angle adjustment Pan: 0 - 360°; Tilt: 0 - 75°; Rotation: 0 - 360°

Low-light sensitivity 0 lux with IR

IR range Up to ~95 feet (30 meters)

Image adjustments Flip, brightness, contrast, saturation, sharpness, exposure

Ethernet connection 10/100Mbps RJ-45

Operating temperature -22°F – 140°F (-30°C – 60°C)

Operating humidity < 95% (non-condensing) RH

Power 12 V DC ± 25%, 6W or PoE (802.3af, 36-57V, class 3), 7W

Dimensions (DxL) 5 x 3.8” (12.7 x 9.6 cm)

Weight 1.4 lbs. (620 g)

Ingress protection IP67
